Rob Cosman 3/4 Joinery Crosscut Saw

Product Description

What Rob says

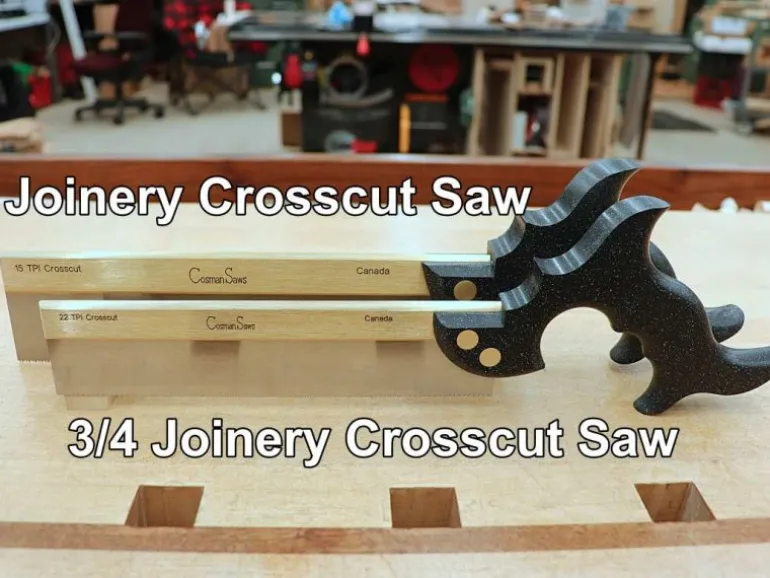

‘Cutting crosscuts in very small stock, can be challenging with our regular-sized Joinery Crosscut saw. It can be done, but I wanted a better saw for this application. That is why I designed my 3/4 Joinery Crosscut saw. As compared to my regular-sized Joinery Crosscut, the 3/4 Joinery Crosscut Saw has a thinner saw plate, smaller teeth, shallower depth of cut, and shorter overall length, which makes delicate crosscuts a breeze.

My 3/4 Joinery Crosscut Saw is perfect for cutting tiny mitres, very small tenon shoulders, the shoulders of tiny tail boards, or anytime you are crosscutting 3/8”(9.5mm) thick or less stock. Like our regular-sized Joinery Crosscut Saw, the 3/4 Joinery Crosscut saw leaves a smooth, ready-to-glue, finished surface.

I designed my 3/4 Joinery Crosscut saw with a thin .015”blade; 22 teeth per inch (TPI), filed crosscut along the entire tooth line; and a minimal .002”(0.05mm) set per side. The teeth, cut with a diamond-saw, slice cleanly and precisely through wood fibres. The minimal set creates a small .019”sized kerf that guides the saw straight in the cut while the shallow 1-3/16”(30mm) depth of blade (tooth-line to brass back) helps with stability while sawing to a line. The pistol grip handle conforms to your hand for a perfect, repeatable fit every time.’Handle Size & Determining your Size: Our handles come in two sizes: Regular and Large. Please refer to the picture above showing how to measure your hand and determine what size handle is correct for you size hand.’

Product Details:

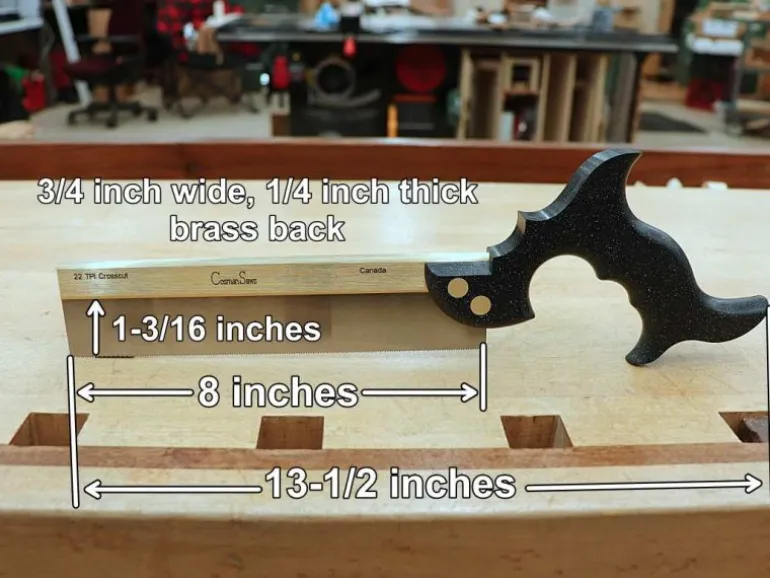

• Size. Overall length (Toe to Handle tip): 13-1/2”(343mm). Blade length (Toe to heal): 8”(203mm). Depth of plate under the back: 1-3/16” (30mm).
• Weight: 12.50 ounces / 355g (+/- 0.5 ounces / 15g).
• Blade. Made from .015”(0.38mm)thick, spring steel.

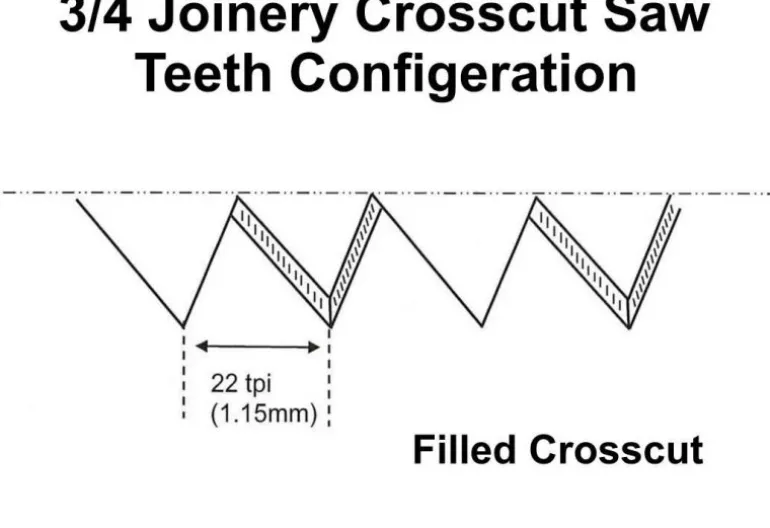

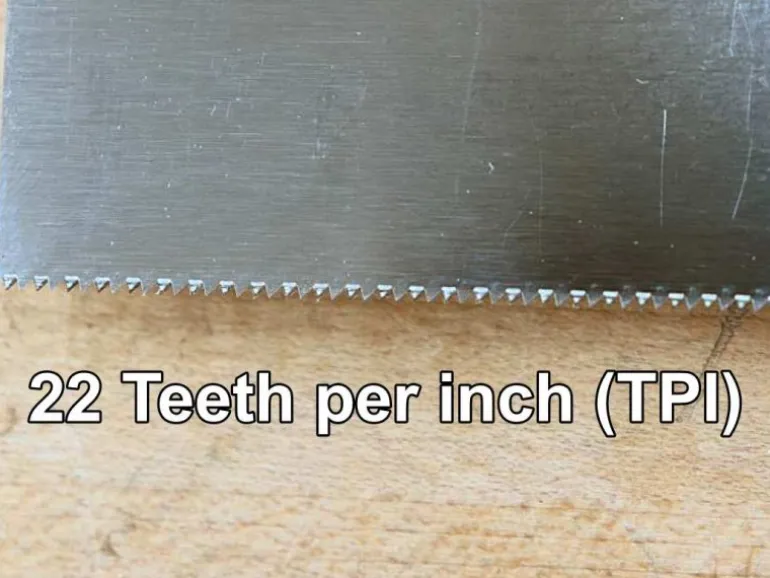

• Tooth Geometry. Filed crosscut with 22 TPI with a 0 degree tooth rake allowing you to finish the cut with just a few strokes.

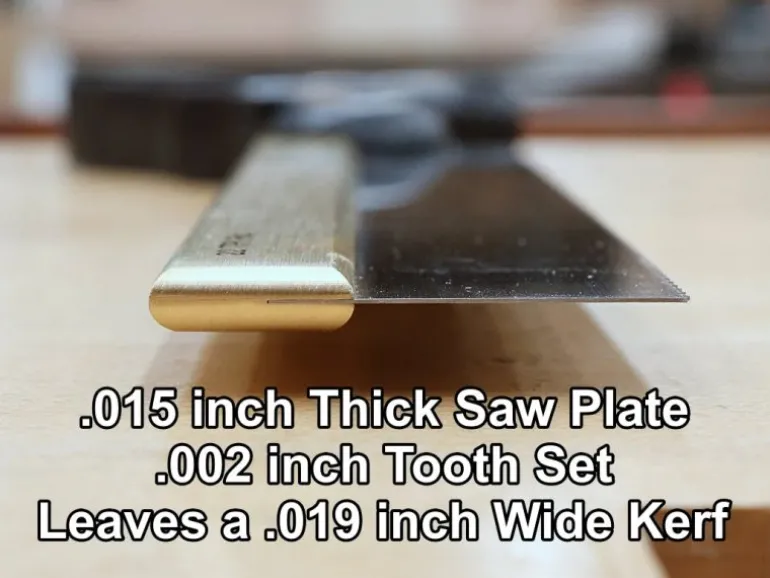

• Set. Unlike most saw manufacturers who stamp out their saw teeth, leaving ”dimples” in the blade, we individually cut out each of our saw teeth with a diamond saw. This allows us to maintain a very slight set of only .002” (0.05mm) per side, since we don’t introduce that “dimple” onto the blade. This slight set produces a narrow .019” (0.48mm) kerf that eliminates slop allowing the saw blade to accurately track in the saw kerf resulting in dead straight saw cuts with smooth ready-to-glue surfaces.
• Brass Back: Rob Cosman’s 3/4 Joinery Crosscut saws have a 1/4” (6.35mm) inch thick x 3/4” (19mm) wide brass back secured to the blade with peened and flushed copper pins. Not only does the brass look wonderful but it imparts extra weight to the saw providing you a better balanced saw, allows the saw and gravity to do the cutting work, and helps you “feel” perpendicular.
• Handle. Our unique “pistol grip” handle has memory enhancing carved finger recesses for a perfect and comfortable fit. A pair of brass split nuts secures the handle to the blade and the brass back. Our 3/4 Joinery Crosscut Saw handles are available in Swanstone, a resin-composite material reinforced with fiberglass for durability.
• Handle Size & Determining your Size: Our handles come in two sizes: Regular and Large. Please refer to the picture above showing how to measure your hand and determine what size handle is correct for you size hand.
