Rob Cosman’s Wood-Hinge Individual Jigs

Product Description

What Rob says

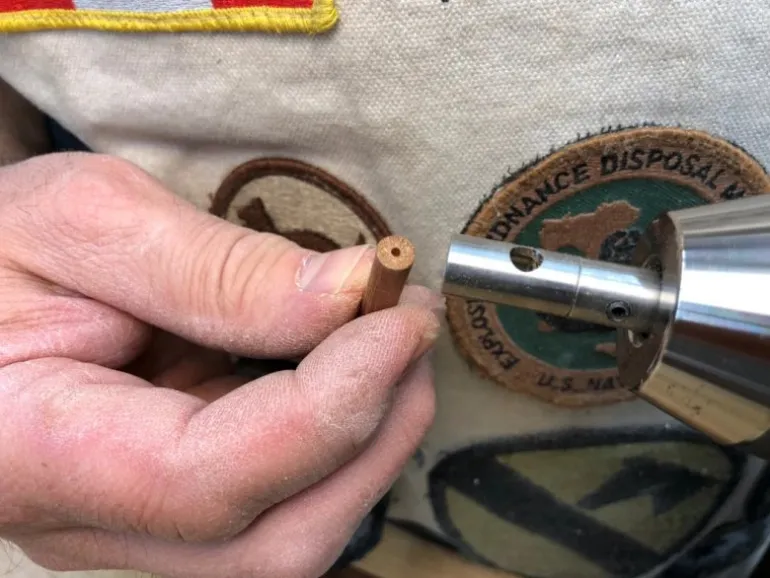

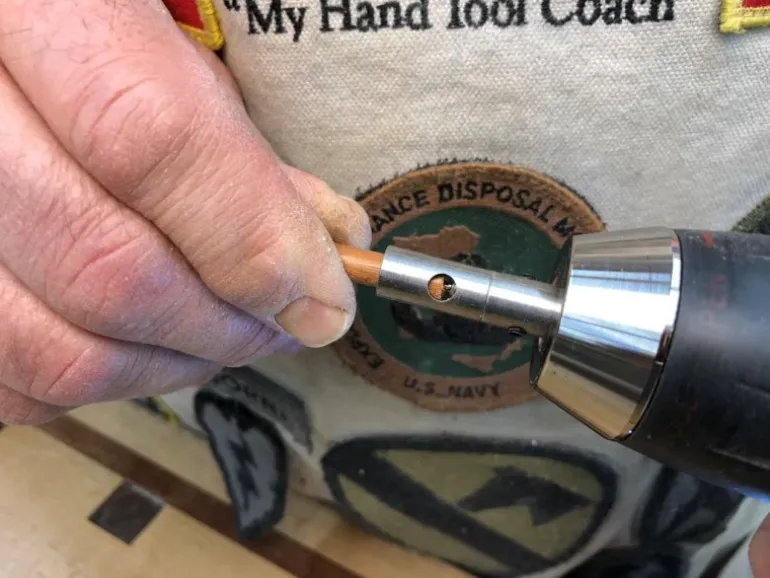

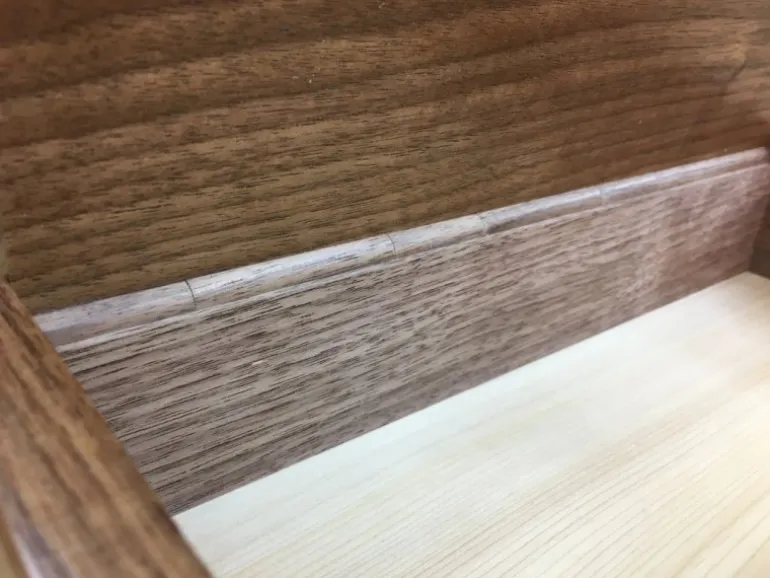

Master craftsman Dale Nish taught me how to make an amazing wood hinge for boxes. A wooden dowel is cut into segments, a shallow hole is drilled in the centre of each dowel and a small pin is inserted into the hole for the dowel segments to pivot on. I’ve made thousands of boxes using this style of hinge and I have designed four jigs to precisely drill the hole in the centre of dowel segments (the most difficult task).

Product Details

• Four individual wood-hinge drill jig sizes available: 1/4″, 3/8″, 1/2″ & 3/4″

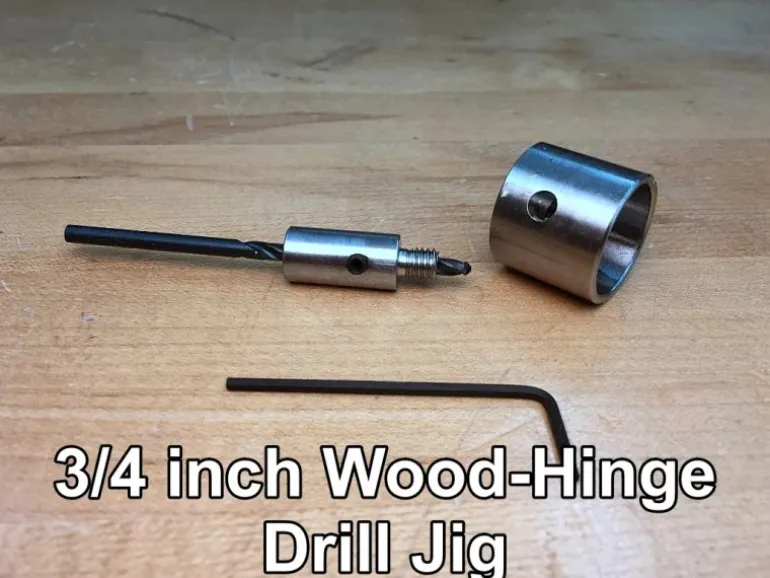

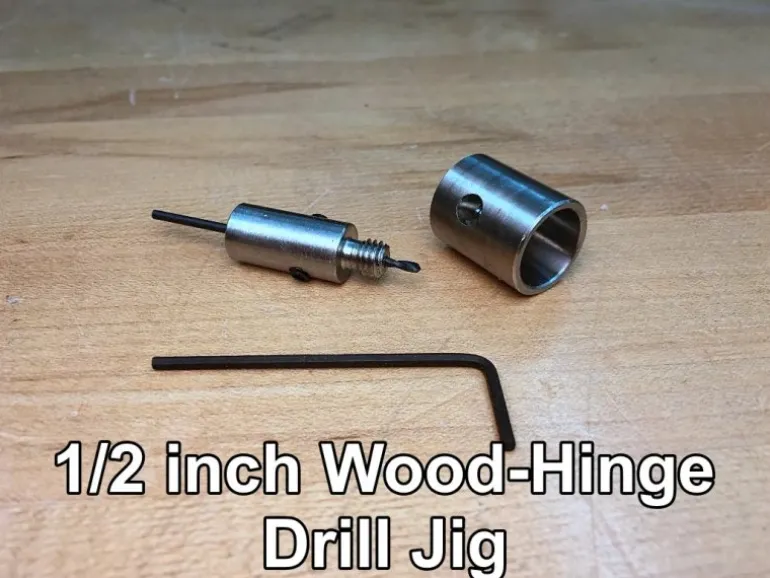

• Each individual wood-hinge drill jig includes one dowel jig, drill bit holder, drill bit, and Allen wrench.
• 1/4″ & 3/8″ drill jigs come with a 1/16″ drill bit.
• 1/2″ & 3/4″ drill jigs come with a 1/8″ drill bit.
• Opposing set screws hold the drill bit securely in the holder and allows for adjustment of the hole depth.
• Port holes in drill bit holder expel the sawdust to prevent clogging.
